HP Velotechnik Scorpion FX 20 (Foldable) Rigid Frame

HP Velotechnik Scorpion FX 20 (Foldable) Rigid Frame
  • Color: Pearl Orange / Black
  • Color: Cosmic grey / Black
  • Color: Custom Color +189
  • Color: Double Color +279
$4,390.00 - $14,166.00
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience.

Details

Scorpion FX 20 - 20" front wheel / 20" rear wheel

Raised Seat, Easy Access and Plenty of Space for Four Bags:

Scorpion fx
With the comfortable touring tricycle Scorpion fx, HP Velotechnik offers an impressively stable folding trike that has been specially developed for the needs of touring cyclists.

The seat of the Scorpion fx is positioned far higher and more upright than that of its sporty contemporaries, the Scorpion and Scorpion fs. This gives easy access to the Scorpion fx and offers a clear view on the road ahead and a panoramic view of the scenery around you. In brief: Enjoy a lot of trike fun the easy way!

The Scorpion fx not only has room for a sturdy luggage rack with an integrated platform above the rear wheel. The higher seat position also creates space for a lowrider rack behind the seat. Its sturdy tubing provides secure support for two more panniers.

In total, you can transport up to 50 kg (110 lbs) of luggage in four large panniers. Good for the handling stability: Your luggage travels particularly favourably because it is positioned low and close to your body, ensuring a perfect centre of gravity. If you choose the ErgoMesh seat and the matching Side Bag Mounts, you have easy access to another 10 kg of luggage in two handlebar bags next to the seat.

A large variety of drivetrain options to choose from allow you to relax and enjoy the laid-back comfort of the Scorpion fx with such a heavy payload even on the steepest hills. On request, we can also equip your Scorpion fx with a powerful electric motor and double battery option for maximum travel range!

Scorpion fx. The Comfortable, Foldable Travel Trike.
The streamlined, relaxed seating position on the Scorpion fx, just like on a recumbent bike, ensures a fast pace. The seat angle is adjustable from 46-54°. The seat height of 35 cm (14?) was chosen by HP Velotechnik for the Scorpion fx to be significantly higher than the sportier Scorpion to provide a very good overview in road traffic. The rearward curved frame cross member allows the driver to get close to the seat and get on and off without effort. And even when stopping at traffic lights, the driver no longer has to take his feet off the pedals positioned at the height of 38-46 cm (15-18?) but can accelerate powerfully from the comfortable recumbent seat.

The frame suspension with 8.5 cm (3.5?) travel works unaffected by pedaling forces thanks to HP Velotechnik’s proven No Squat design. The stiff aluminum frame allows a very low weight for tricycles from 16.5 kg (36.5 lbs). The frame and seat are adjustable in length to suit riders from 1.57 m to 2.00 m (5’2?– 6’7?) tall.

Wider is better: The wider the track, the greater the tipping stability and the faster your trike can corner. A wide track also allows a bigger steering angle for a small turning circle. So that your Scorpion fx still fits easily through doors and gates, HP Velotechnik has developed narrow hubs for a low overall width of just 83 cm (33?). (You want it even wider? The maximum track width and the highest seating position of our Tadpole trikes can be found with the models Scorpion plus 20 and Scorpion plus 26.)

If you have any questions, call us and we will help you configure your HP Trike.

Options can been added after the order is placed. Email us and we will build to your specifications.

single custom color according to RAL-color

189.00

front boom with derailleur tube regardless of shifting option (not with STEPS or PINION)

0.00

front boom carbon saves 170 g of weight

219.00

length fitting service: distance center of bottom bracket to end of main frame          cm

0.00

front boom quickadjust compensates extra chain length when front boom is adjusted, QR-levers

189.00

headrest for mesh seats adjustable in height and angle, with quick release lever

159.00

handrests left and right comfortable hand support, mounted on handlebar, removable cushion

139.00

seat angle adapter Adapter to adjust the backrest in a more upright position, with quick release

99.00

Gekko seat pad additional comfortable upholstered seat pad to attach to the normal seat, fastening with buckles, breathable upholstery

149.00

adjustable end stops allow exact positioning of the seat

19.00

rain cover for seats, Ripstop nylon fabric, blue

25.00

drivetrain STURMEY ARCHER Tripleshift/24 24 speed with twist shifters (basic specification)
SRAM X4 rear derailleur / twist shifters, STURMEY ARCHER 3 speed internal gear hub, SHIMANO cassette 11-34, crankset with 46 teeth

0.00

drivetrain SHIMANO Nexus 8 Premium 8 speed, internal gear hub with twist shifter, black

59.00

drivetrain STURMEY ARCHER Tripleshift/27 27 speed, SHIMANO DEORE rear derailleur, MICROSHIFT / STURMEY ARCHER barend shifters, STURMEY ARCHER 3 speed internal gear hub, SHIMANO cassette 11-36 teeth, crankset with 46
teeth chainring, double sided chainwheel disc

159.00

drivetrain SRAM/30 30 speed, SRAM GX rear derailleur, crankset 52-42-30, MICROSHIFT front derailleur, SRAM SL-500 barend shifters, SRAM cassette PG 1050 11–36

399.00

drivetrain PINION C1.12  12 speed front gear box, long twist shifter

1,790.00

drivetrain ROHLOFF Speedhub/14 14 speed, black, long twist shifter

1,690.00

E-drive SHIMANO STEPS E5000 SRAM X4 up to 20 mph, SRAM X4 8-speed rear derailleur, Li-Ion battery 418 Wh, 2 A charger, walking aid 4 mph

2,170.00

E-drive SHIMANO STEPS E5000 Nexus Di2 up to 20 mph, SHIMANO Nexus 8 speed Di2 gear hub, Li-Ion battery 418 Wh, 2 A charger, walking aid 4 mph)

2,590.00

E-drive SHIMANO STEPS E8000 ROHLOFF up to 20 mph, incl. ROHLOFF 14 gear internal gear hub, Li-Ion battery 418 Wh, walking aid 4 mph

4,490.00

big battery pack SHIMANO STEPS E5000 / E8000 Li-Ion, 504 Wh, fast charger

269.00

E-drive NEODRIVES Z20 with SRAM/30 (from spring 2020) up to 25 km/h, 30 gear derailleur, rear derailleur SRAM GX, handlebar end gear lever SRAM SL-500, cassette SRAM, chainring set 3-speed black, Li-Ion battery 612 Wh, starting aid,
reverse gear, Display position: O above handlebar grip O beside handlebar grip

3,290.00

E-drive NEODRIVES Z20 with PINION C1.12 (available from spring 2020) up to 25 km/h, hub motor, 12 speed PINION C1.12 bottom bracket gearbox, Li-Ion battery with 612 Wh, starting aid, reverse gear, not compatible with streamer, charger, Display position: O above handlebar grip O next to handlebar grip

4,490.00

short cranks 155 mm, recommended for riders under 175 cm (5’7")

25.00

tire exchange from SCHWALBE Tryker 40 mm to   O Marathon Plus 47 mm  O Kojak 35mm (SRAM/30 or PINION only)

35.00

disc brakes AVID BB7 mechanical, separate brake per front wheel (basic specification)

0.00

disc brakes AVID BB7 coupled mechanical, coupled front brakes with one-hand operation, rear disc brake, parking brake function, front brake lever:   O left   O right

109.00

disc brakes TEKTRO Auriga hydraulic, separate brake per front wheel, lever reach adjustable

139.00

disc brakes TEKTRO Auriga Twin hydraulic, coupled front brakes with one-hand operation and parking brake function, rear disc brake, front brake lever:   O left   O right

339.00

disc brakes SHIMANO XT hydraulic, separate brake per front wheel, lever reach adjustable

239.00

parking brake SHIMANO rear wheel V-Brake with thumbshifter

59.00

light wire routing only twin wires routed through the frame O for hub dynamo   O for tire dynamo

89.00

lighting system rechargeable/EYRO up to 30 Lux, rechargeable headlight and sensor rearlight

109.00

lighting system SON xs-m disc dynohub/IQ-X with front and rear parking lights, SCHMIDTS ORIGINAL NABENDYNAMO hubdynamo, LED headlight B&M IQ-X, daytime running lights, up to 100 Lux, rear light B&M Toplight Flat S plus with brake light

669.00

lighting system battery/IQ Fly only with E-drive, LED-headlight B&M IQ Fly Premium powered by E-bike battery, up to 80 Lux, rear light B&M Toplight 2C DC

199.00

lighting system battery/IQ-X only with E-drive, B&M IQ-X up to 140 Lux

279.00

indicator lights system WingBling only in conjunction with electric drive

619.00

rear rack 10 mm tube, black powder coating, max. load 55 lbs / 25 kg

79.00

side bag mount Mounting for handlebar bags, fixed to the frame, maximum load 5 kg, left and right, unmounted, folding function limited, bike can no longer be pulled on wheels

139.00

mudguard set HP Trikefender front 60 mm width, rear SKS 53 mm with spoiler, black

259.00

clipless pedals SHIMANO PD-T8000 lightweight, multi-purpose pedal for normal and SPD shoes

109.00

pedals with heelstrap and foot clamp left and right easy entry and positive grip, adjustable length, size range   O 8.5" - 11" (22 - 28 cm)   O 10.5" - 13.5" (27 - 34 cm)

159.00

water bottle set HP VELOTECHNIK 2x0.6 l PE-bottle with HP print, with bottle cages, mounted

59.00

rear mirror B&M E wide view angle, easy to adjust, knuckle mounting   O left   O right

69.00

rear mirror B&M E both sides left and right knuckle mounting

138.00

rear mirror Mirrycle with barend mounting, also computer mount   O left   O right

59.00

rear mirror Mirrycle both sides barend mounting left and right

118.00

flag HP VELOTECHNIK double-sided print, with reflective strip

29.00

Universal holder for accessories Mounting on the handlebar end (for gearshifts with twist shifters) or on the barend shifter, Ø 22.2 mm tube holder for accessories such as mobile phone holder / GPS devices or bell, max. load 400 grams

42.00

speedometer mount for computers or battery lights, incl. sensor bracket for front wheel

25.00

air horn AIRZOUND XL about 30-115 dB

35.00

Streamer clear front fairing, with quickmount system, incl. assembly (not w/PINION and SHIMANO STEPS)

599.00

transport cover suitable for all folded HP VELOTECHNIK trikes, nylon fabric

79.00

frame lock AXA Victory with removable key, without chain, black

79.00

Chain for frame lock AXA Victory length 100cm

35.00



Top Virtues of the Scorpion fx

Sportiness 60%
Comfort 83%
Travel suitability 94%
Everyday strength 92%
Transportability 75%

Precision can be measured, passion for detail must be felt

Aluminum knuckles

Sandblasted and matt anodized surface Ball head of the track rod protected against splash water

recumbent performance trike scorpion fs 26 chain idler
Large diameter chain idler

Replaceable ball bearings with integrated chain guide

recumbent performance trike scorpion fs 26 front wheel hub
Smooth running hubs

Fast wheel removal with our open knuckle system

recumbent-performance-trike-scorpion-fs-26-folding-hinge

High precision folding hinge with self-locking latch

Optional Features for True Individuals

Have you got your own notion of your ideal bike technology? Our modular system enables us to build your trike to meet your needs and desires. A whole range of reliable features and components is available for your trike, all of which have been specially developed to excel in everyday use.

A lowrider rack can also be mounted additionally on the luggage rack of the Scorpion fx. It can be loaded up to 25 kg (55 lbs). Tube diameter is 12 mm (0.5").
foldable trike faltbares dreirad scorpion fx schutzbleche mudguards trikefender Functional fenders: The HP Velotechnik trike fenders offer excellent rider protection against spray from the rear and in particular, from the side. HP Velotechnik enlarged the inside facing part to improve the spray protection to the driver, especially when cornering. Elegant mounting hardware located on the inside of the fender with height adjustment. The rounded shape of the fenders with 60 mm / 2.36" width allows the installation of large-volume, comfortable tires up to 50 mm / 2" width.liegedreirad recumbent trike scorpion parkbremse parking brake As a parking brake, we can install a V-brake on the rear wheel. It is operated by a thumb lever at the handlebar.adapter weber-kupplung fahrradanhaenger liegerad Excellent for transporting children or transport on long trips: Your Scorpion fs 20 can tow a multi-track trailer weighing up to 40 kg (88 lbs). The trailer hitch developed for the Scorpion by Weber and HP Velotechnik has a rigid connection plate that lowers the coupling point by 5 cm (2"). This enables the luggage rack to benefit from full suspension without touching the trailer tow bar.

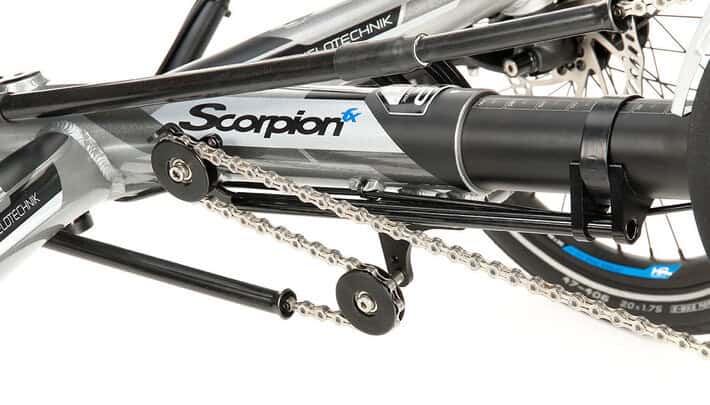

scorpion trike series front boom quick adjust rahmenschnellverstellung The Streamer front fairing from HP Velotechnik keeps your feet warm and legs dry. The fairing can be easily removed using the quick-release lever and rolled up for transport.

Globetrotter with a Panoramic View

Scorpion fx. The Comfortable, Foldable Travel Trike.

The streamlined, relaxed seating position on the Scorpion fx, just like on a recumbent bike, ensures a fast pace. The seat angle is adjustable from 46-54°. The seat height of 35 cm (14") was chosen by HP Velotechnik for the Scorpion fx to be significantly higher than the sportier Scorpion to provide a very good overview in road traffic. The rearward curved frame cross member allows the driver to get close to the seat and get on and off without effort. And even when stopping at traffic lights, the driver no longer has to take his feet off the pedals positioned at the height of 38-46 cm (15-18") but can accelerate powerfully from the comfortable recumbent seat

Wider is better: The wider the track, the greater the tipping stability and the faster your trike can corner. A wide track also allows a bigger steering angle for a small turning circle. So that your Scorpion fx still fits easily through doors and gates, HP Velotechnik has developed narrow hubs for a low overall width of just 83 cm (33"). (You want it even wider? The maximum track width and the highest seating position of our Tadpole trikes can be found with the models Scorpion plus 20 and Scorpion plus 26.)

Technical Data for the Scorpion fx 20

  • Seat height BodyLink: 35 cm (14")
  • Seat height ErgoMesh: 38 cm (15")
  • Seat height ErgoMesh HS plus: 49 cm (9.3")
  • Seat angle: 46–54°
  • Seat angle: ErgoMesh HS plus: 46–59°
  • Wheel size (front wheel): 20" (ISO 406)
  • Wheel size (rear wheel): 26" (ISO 559)
  • Max. tire width: 5 cm (2")
  • Bottom bracket height: 38–46 cm (15"– 18")
  • Ground clearance: 13,5 cm (5.3" statically compressed)
  • Wheelbase: 107 cm (40")
  • Track width: 78 cm (31")
  • Width: 83 cm (33")
  • Length: 165–201 cm (5'6"– 6'7")
  • Turning circle: 4,5 m (14'5") outward
  • Folding size: 100 × 83 × 71 cm (40 x 33 x 27")
  • Dismantled size: 104 × 83 × 60 cm (41 x 33 x 24")
  • Bottom bracket standard: BSA 68 mm
  • Suspension travel at the rear wheel: 8,5 cm (3.3")
  • Weight: from 16,5 kg (36,5 lbs) incl. pedals
  • Payload: max. 140 kg (309 lbs)
  • Frame material: Aluminum 7005 T6 heat treated
  • Swing arm bearing: maintenance-free
  • Rider height: ca. 1,57 – 2,00 m (5'2"– 6'7")

HP is committed to the quality of their products. Therefore they grant a guarantee of 10 years on the frame and the swing arm bearing of their bikes and trikes.
