Surface 604 Electric Bikes ROOK - STEP THROUGH COMMUTER
Details

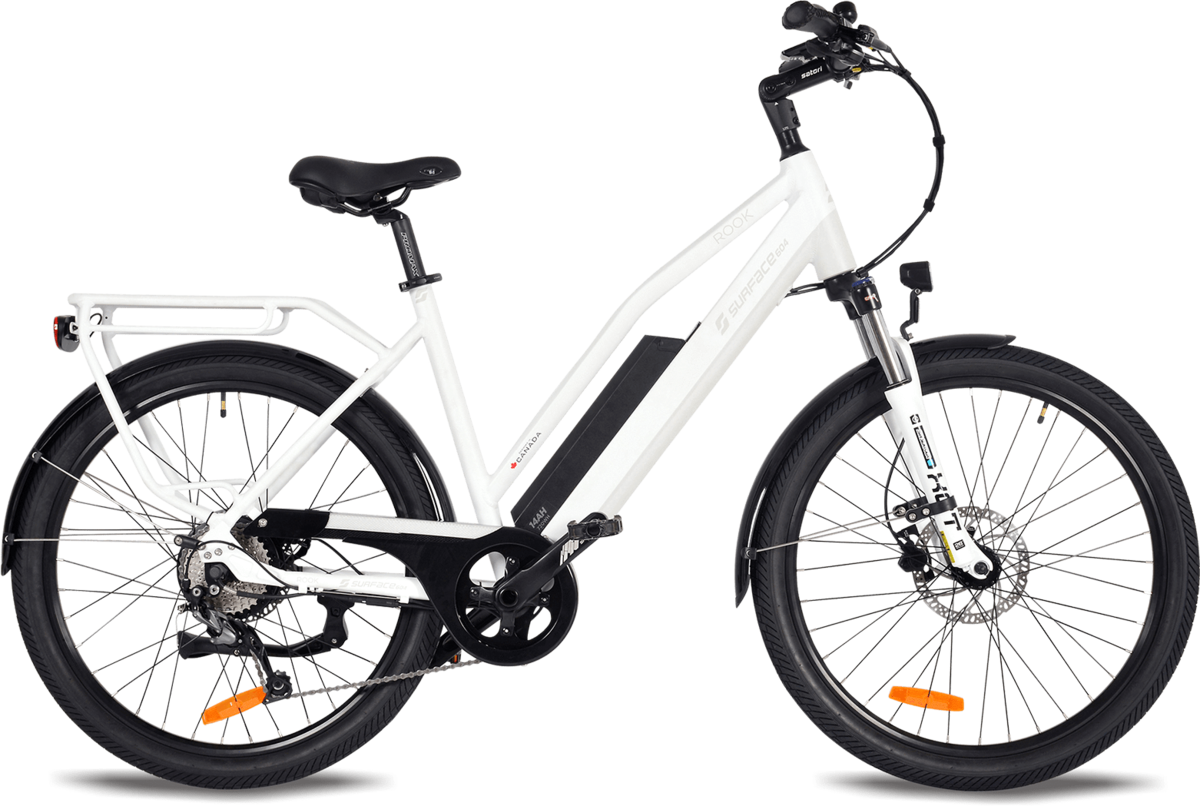

ROOK
Step-Through Commuter
The Rook is a comprehensive do it all commuter that comes loaded with features. Having a step-thru frame allows for easy mounting of the bike.
Powerful 500W Motor to tackle steep hills
Large capacity Samsung batteries for long range
Beautifully designed step-thru design that provides a lower standover height.
Fully integrated bright front light and brake lights
Adjustable stem to seat in an upright position
SR Suntour XCT front suspension
Whisper smooth intelligent torque sensing system
Fully decked out with fenders, a rear rack, and a chainguard
(CLASS 3 READY)
POWERFUL 500W MOTOR
The Colt comes equipped with a 500W hub motor that is extremely powerful (peaks at 750W).
With a torque sensor and throttle on demand, the Colt is great for those that could benefit from an extra boost to make it up the hill.
Geared for performance - we paired all that power with an industry-leading 12mosfet 25A controller, so Colt delivers unmatched torque and speed.
Watch out for other riders as you zip pass them.
Whisper Smooth Torque Sensing Pedal Assist
Because an electric bike is only as good as it’s power distribution.
Precision torque sensing performance at 104 cadence pulses per revolution; 1,000 torque samples per second.
Colt’s incredibly smooth torque sensor knows how hard
you’re pedalling down to the microsecond and matches it with proportionate power.
Custom drop out design delivers whisper smooth torque
sensor sensation at any assist level.
In fact, you’ll swear it’s as smooth as a mid-drive motor.
Gone are the days of simple cadence sensors!
Redesigned Cockpit
Now with an extra-large colour LCD display to show, all vital information and give added security.
Set a passcode and the bike won’t start without it, just like your phone.
LONG RANGE BATTERY
Colt's high capacity 48V 10.4Ah Samsung lithium-ion battery provides maximum range.
Colt can handle heavy loads and travel up to 35 miles on a single charge.
As an added bonus the battery also features a USB plug for charging mobile device on the go.
Upgrade to 48V14Ah battery is available.
LOADED WITH EXTRA FEATURES
The Rook comes with standard features added to make the riding experience more comfortable.
MOTOR
High torque 500W (peaks at 750W) Bafang geared hub motor
DRIVE MODE
Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm
THROTTLE
Thumb push activated throttle
CONTROLLER
12 Mos 48V 500W 25A with BMS
TOP SPEED
20mph (32km/h)
BATTERY
48V10.4Ah Samsung Lithium Ion battery
BATTERY RANGE
Up to 35mi (56km)
BATTERY CHARGE TIME
3-6 hours for a full charge from empty
DISPLAY TYPE
Surface 604 Color LCD display with micro USB jack
DERAILLEUR
Shimano Alivio 9-speed
FORK
SR Suntour XCT 80mm travel, 9mm quick release axle
CASSETTE
Shimano 9 speed, 12-34T
SHIFT LEVERS
Shimano Alivio trigger shift with easy-to-read optical gear display
BRAKES
Tektro Auriga hydraulic disc, post mount, 180mm rotor with motor inhibitors
CRANK SET
Samox 42T front sprocket
BOTTOM BRACKET
Samox Sealed Bottom Bracket
FRAME TYPE
Tapered headtube, custom reinforced battery mounts,
internal cable routing, post mount brakes
FRAME MATERIAL
6061 aluminum alloy
STEM
Satori UP2+ adjustable
HANDLEBAR
Promax aluminum, 620mm wide, 6° sweep,
20mm rise, 31.8mm clamp diameter
GRIPS
Leather like grip
PEDALS
Wellgo platform
CHAIN
KMC 9-speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal, ergonomic gel, wide
TIRES
26? x 2.1? Kenda Kranium
KICKSTAND
Heavy duty aluminum
STANDOVER HEIGHT
Small-Medium: 26” (662mm)
Medium-Large: 26.4” (671mm)
NET WEIGHT (INCLUDING BATTERY)
55lbs
WEIGHT CAPACITY
285lbs(130kg)
BUILT-IN FEATURES
Chain guard, rear rack, fenders (front and rear), LED lights (front and rear), Bell
OPTIONAL UPGRADE FEATURES
SR Suntour NCX Suspension Seat Post, 14ah Battery
FIND OUT WHAT SIZE FITS YOU
A rider's height is best determined for size with S/M (17.5" frame) optimal for people 5'2" to 5'7" and M/L (19.5" Frame) ideal for those 5'8" to 6'6".
SIZE GUIDE
| SIZE | FRAME | RIDER'S HEIGHT |
|---|---|---|
| S/M | 17.5" | 5'2" TO 5'7" |
| M/L | 19.5" | 5'8" TO 6'6" |
Weight capacity for both sizes is 285lbs (130kg)
